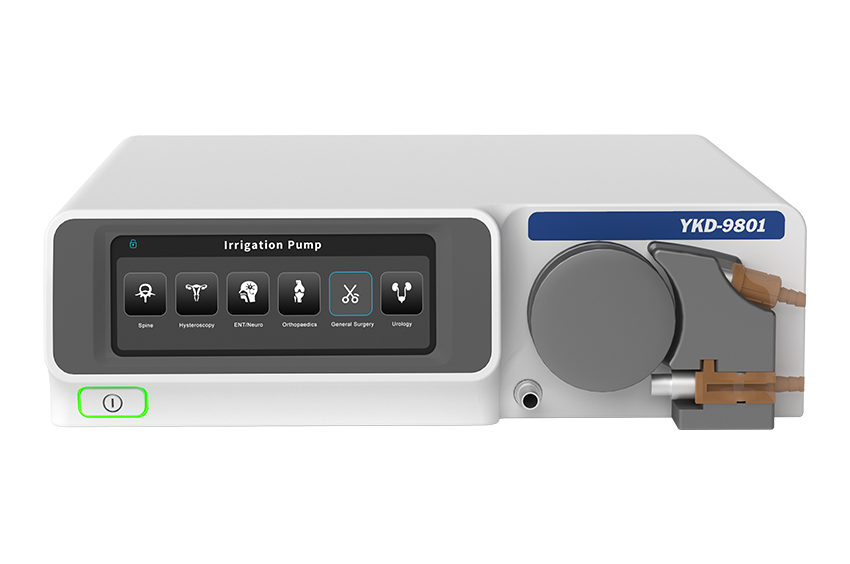

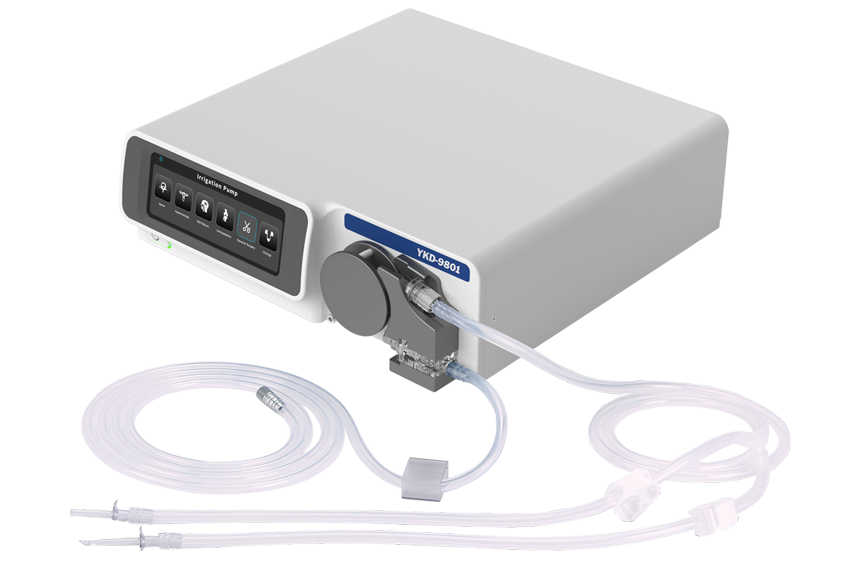

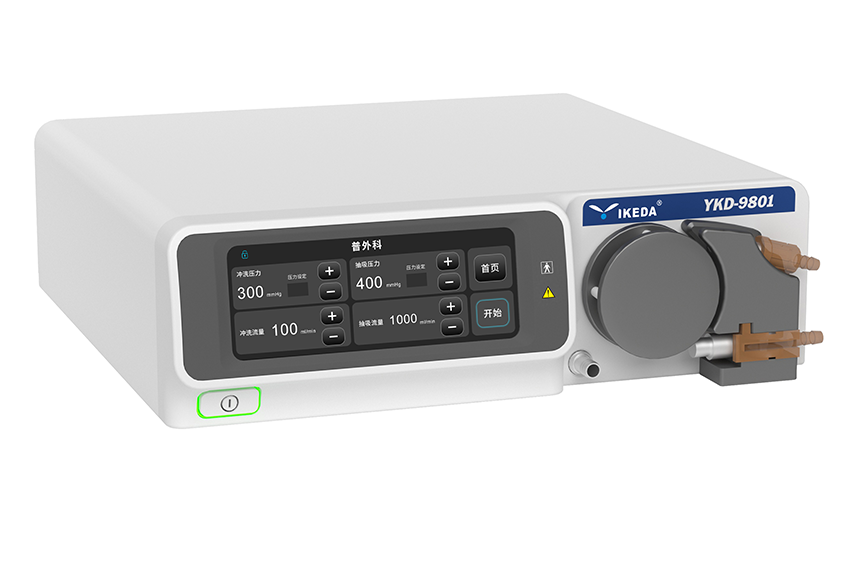

The YKD-9800 Endoscopy Irrigation Pump is a powerful but controllable pump that can irrigate fluid via either the instrument or auxiliary water channels of endoscopes. YKD-9800 Accessories are medical-grade materials, ensuring surgical safety.Utilizes a pressurized irrigation system to maintain cavity shape and optical clarity, creating an ideal surgical field with unobstructed visualization.
Physicians seamlessly switch between six preloaded specialty modes (Spinal, Hysteroscopy, Urology, ENT & Neurosurgery, Arthroscopy, General Surgery) via the 6.8-inch intelligent touchscreen. Parameters auto-load while real-time flow monitoring ensures precision.
| Model | YKD-9800 | YKD-9801 |
| Function | Flushing/Suction | Flushing |
|
Safety Classification |
·Class I, Type BF |
|
|
Power Supply |
·AC 100-240V 50-60Hz | |
| Rated Power | ·≤200VA | |
| Display | ·6.8-inch touchscreen | |
| Noise Level | ·≤70 dB(A) | |
Preset Pressure Limit
| Spinal: 40~140mmHg, adjustment step: 10mmHg |
| Hysteroscopy & Urology: 15~140mmHg, adjustment step: 5mmHg |
| ENT & Neurology: 20~150mmHg, adjustment step: 10mmHg |
| Arthroscopy: 30~150mmHg, adjustment step: 10mmHg |
| General Surgery: 10~700mmHg, adjustment step: 200mmHg |
Preset Perfusion Flow Rate
| Spinal, Hysteroscopy & Urology: 200~600mL/min, adjustment step: 100mL/min |
| ENT & Neurology: 50~125mL/min, adjustment step: 15mL/min |
| Arthroscopy: 150~1500mL/min, adjustment step: 50mL/min |
| General Surgery: 100~2000mL/min, adjustment step: 100mL/min |
