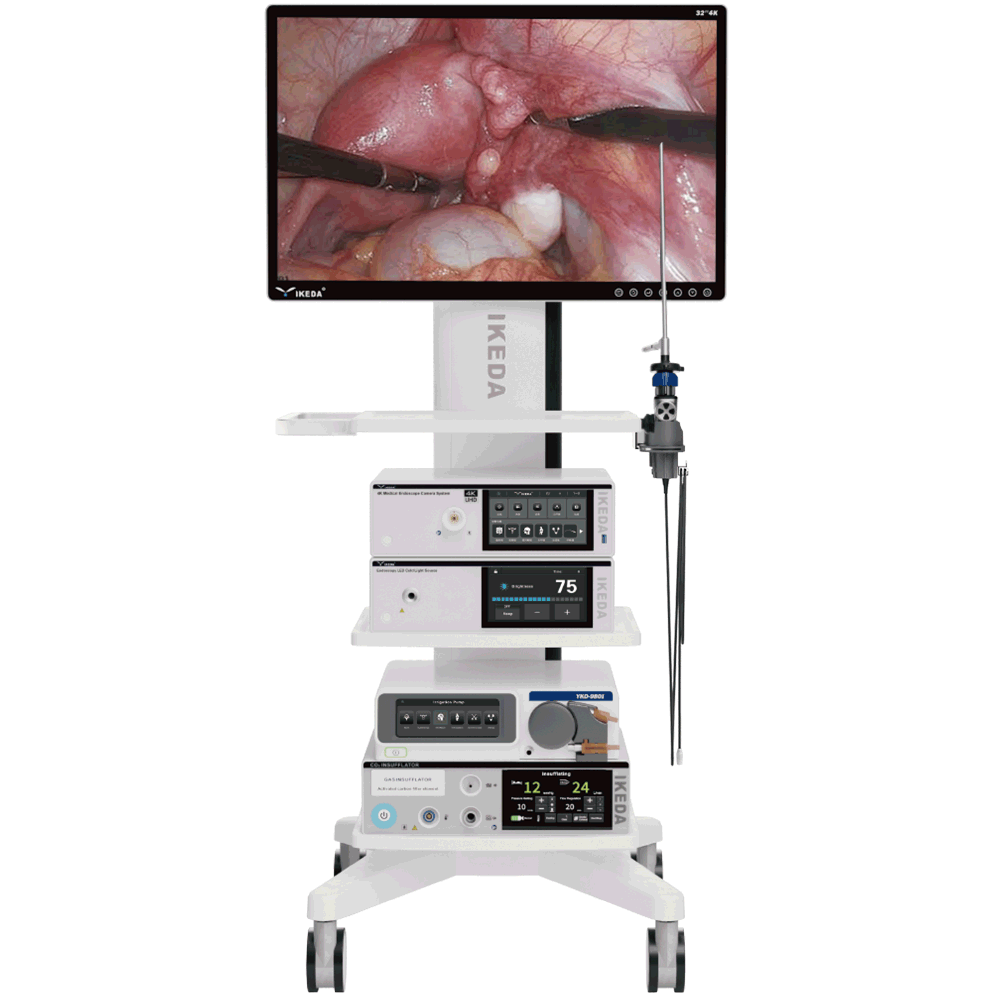

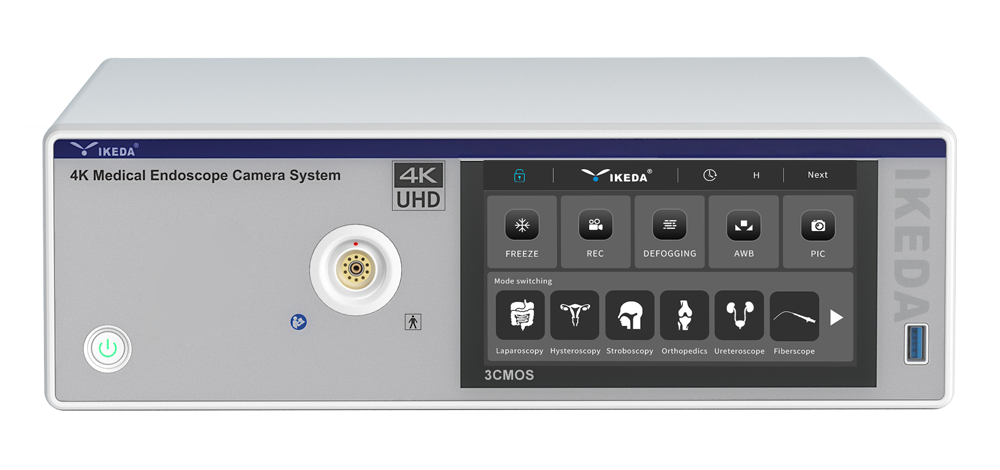

The YKD-9231 4K endoscope camera system combine 4K resolution (3840X2160) with 3-chip technology for natural colour reproduction. Designed to provide enhanced depth, sharpness, and color fidelity, it supports accurate diagnosis and treatment in laparoscopic, ENT, urological, and arthroscopic procedures. With seamless integration into operating rooms, intuitive controls, and support for real-time video recording and playback, IKEDA 3CMOS 4K ensures clinical efficiency and visual precision—making it the ideal choice for hospitals and surgical centers worldwide.
• 4K resolution and modern image processing technology
• 7-inch smart LCD touchscreen, precise control, making the surgical process smoother
• Multiple scene modes with one-touch switching, quickly adapting to different surgical needs
• Built-in USB storage function for image and video acquisition
YKD-9107-T LED Light Source
• With memory function, service life of more than 50,000 hours,20 levels adjustable
• Touch button, easy to clean
• One-click sleep

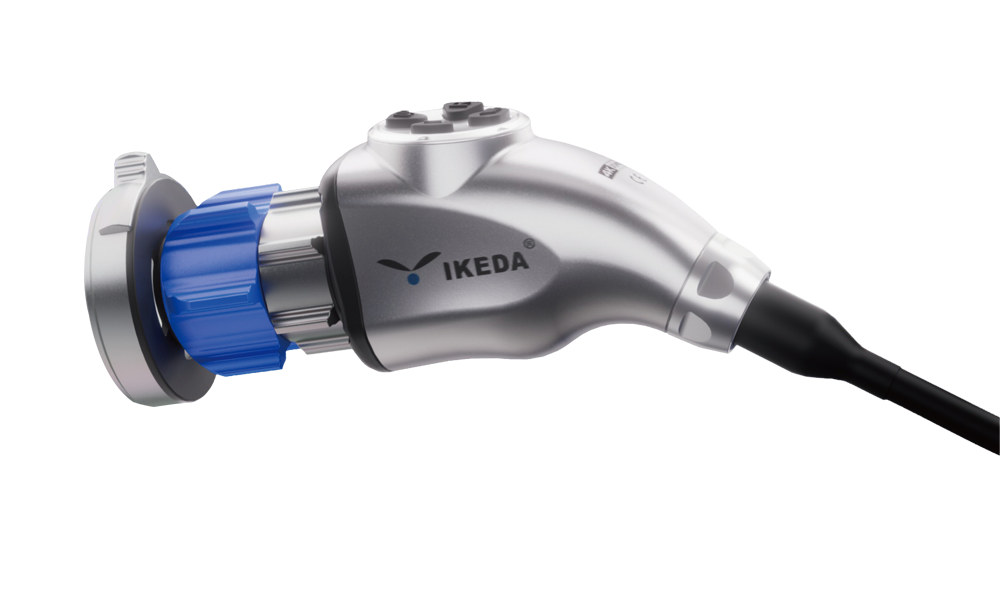

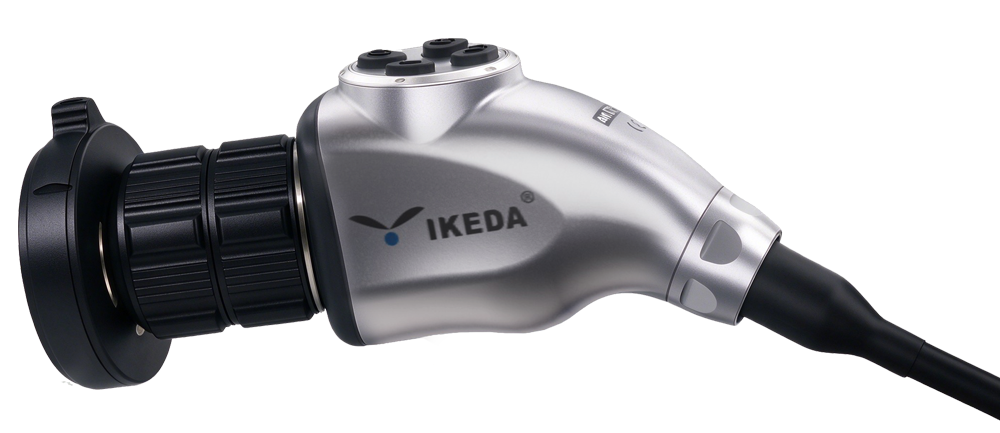

• 4K resolution generated by 3CMOS image sensors.
• Ergonomic, user-friendly design.
• IPX8 waterproof grade
• User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance

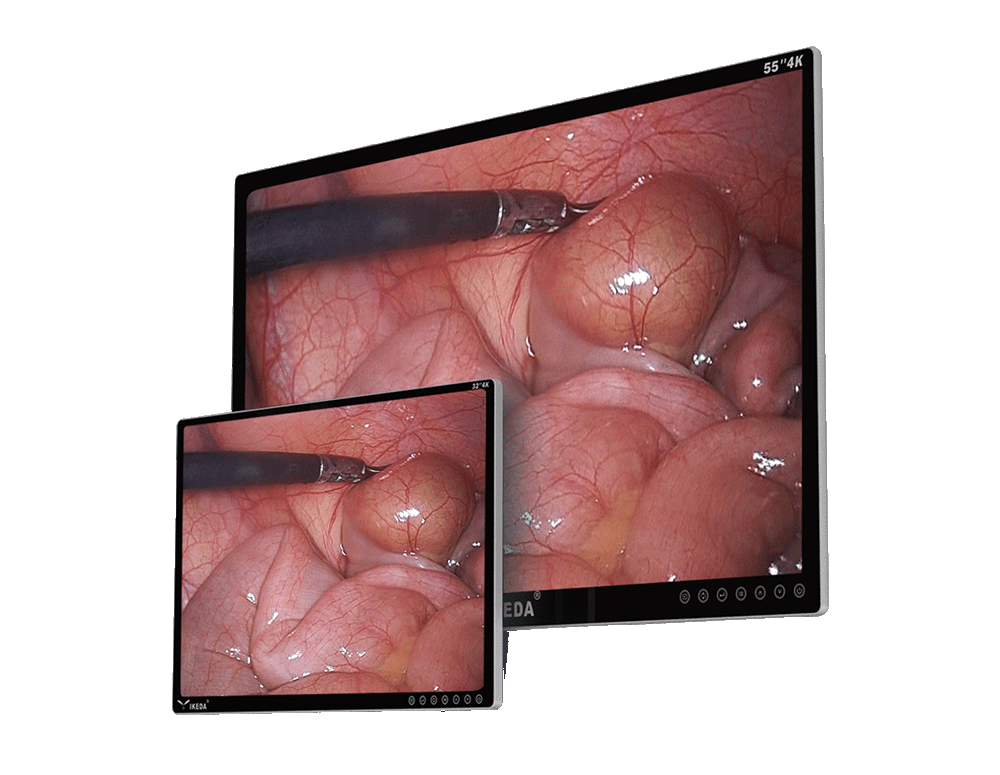

• 55/43/32 inches sizes are available
• Fully laminated panel technology and ananti-glare screen deliver vivid images
• CE/ROHS/FCC certified
| lmage Transfer Pixels | 3840x2160(4K UHD) | ||
| System Noise (Total) | ≥55 dB (A-weighted) | ||
| System Output (Composite) | HDMI 2.0 x1/DVI x1/3G-SDI x1 | ||
|
USB Interface |
USB 3.0 x1 |
||
|
Output Frame Rate |
60Hz/50Hz(auto-sensing) |
||
|
Output Resolution |
3840x2160:1920x1080 |
||
|
lmage Capture Storage |
JPEG,BMP (lossless compression) |
||
|
Video Recording Storage |
MP4 (H.264/AVC) | ||
|
Interaction Mode |
7-inch capacitive touchscreen |
||
| 4 ergonomic handle-mounted control buttons | |||
