Product Profile

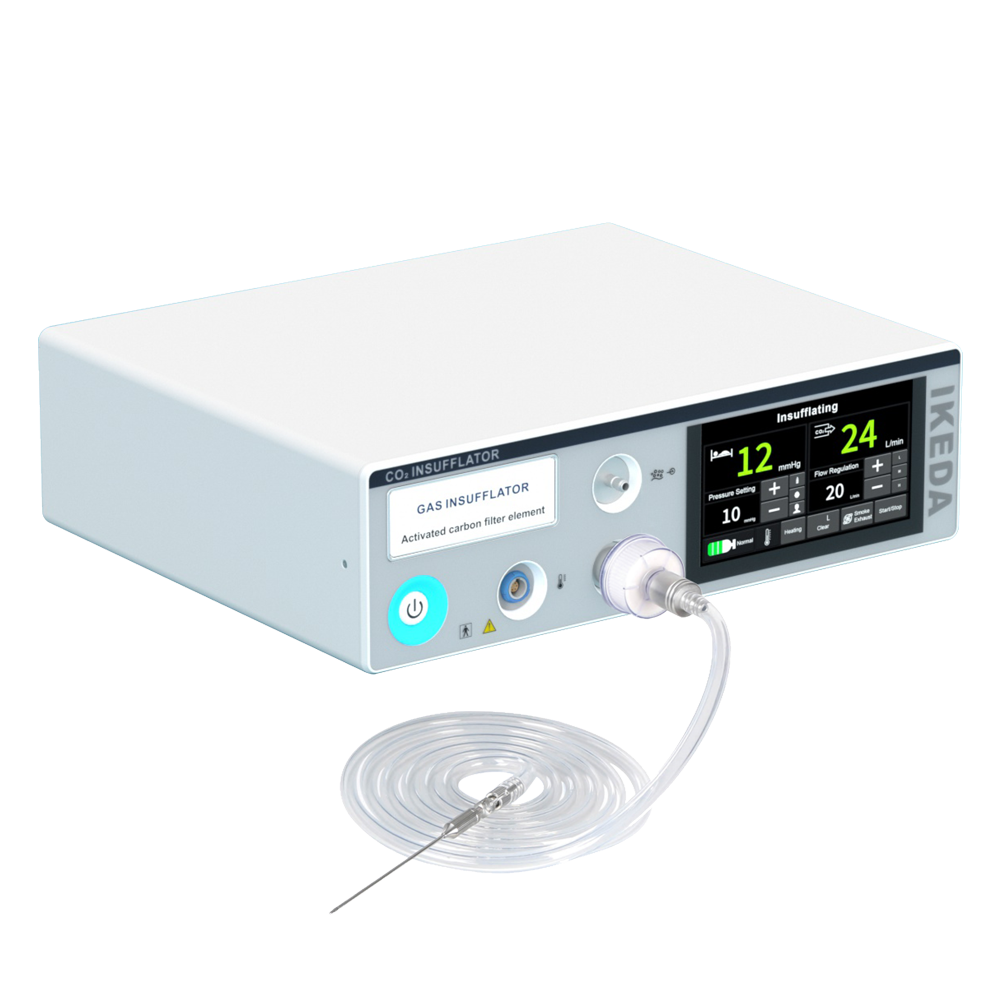

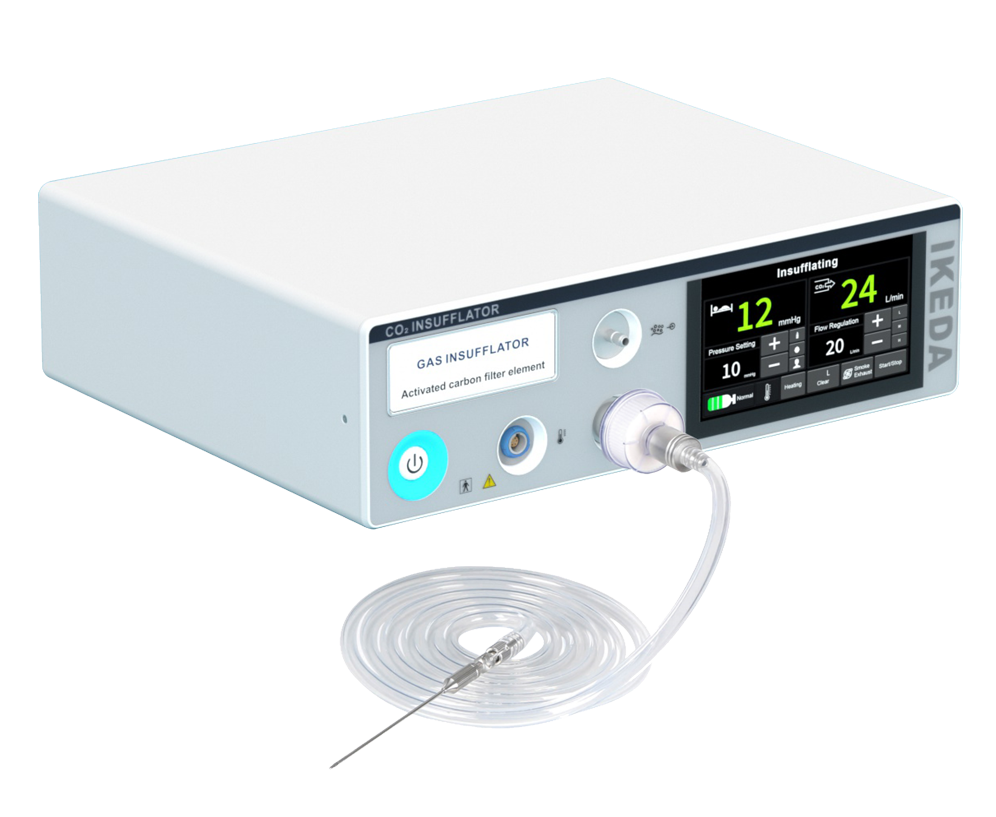

IKEDA Next-Generation CO2 Insufflator
50L/min Max Flow | Intelligent Heating | Integrated Smoke Evacuation | 7-inch touch screen
Featuring 50L/min maximum insufflation flow – the industry's top-tier gas delivery capability. Our dual-controller system with multiple pressure sensors ensures surgical safety through redundant real-time monitoring.Multi-operation modes accessible via a 7-inch intuitive touchscreen,enabling simplified physician control with pinpoint accuracy.Patented gas heating technology reduces postoperative patient pain by 90%, while integrated smoke evacuation maintains optimal surgical visibility.

CO2 Insufflator

CO2 Insufflator

  • 7-inch smart LCD touch screen
  • Max flow rate - 50L
  • Overpressure alarm function
  • Smoke extraction function
  • External heating function
  • Support external device control

7-Inch Touch Interface

  • 7-inch touch screen, easy for doctors to operate, intuitive display, good human-computer interaction experience.
  • Higher actual traffic
  • Multiple modes can be switched with one click
  • Cylinder pressure, visually displayed
  • One-click gas heating, one-click smoke exhaust
Product Detail
Model YKD-9740 YKD-9750
Flow Rate Setting 10~40L/min 10~50L/min
Pressure range 5mmHg~25mmHg
Overvoltage alarm

When the intra-abdominal pressure exceeds the preset pressure by 1mmHg

and lasts for more than 2s, an overpressure alarm will be issued

Overpressure release The overvoltage release time is 30s
Underpressure supplement The undervoltage replenishment time is 30s
Gas filtration The filtration rate of particles of 0.5um and above in the gas is not less than 90%
Dimensions of the main unit 38cm(L)x31.3cm(W)x12cm(H)
The length of the high-pressure connection pipe in the external air supply connection assembly (2900±50)mm
The length of the inflatable tube in the inflatable tube assembly (2500±20)mm
