Product Profile

Experience the Portable FHD Endoscope Camera of a compact and easy to carry unit, which combines a monitor, LED light source, camera control unit,video storage and video playback. IKEDA Portable Endoscopy Unit can be used for arthroscopy, ENT,  PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, urology resectoscope, plastic surgery endoscope, laparoscope,breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber ureteroscope, etc.

Product Feature
Surgical Video Recording and Playback
Surgical Video Recording and Playback
Can be matched with stroboscopic light source for stroboscopic laryngoscopy
Can be matched with stroboscopic light source for stroboscopic laryngoscopy
11-Clinical-Specialties
11-Clinical-Specialties
FHD-Camera-Head
FHD-Camera-Head

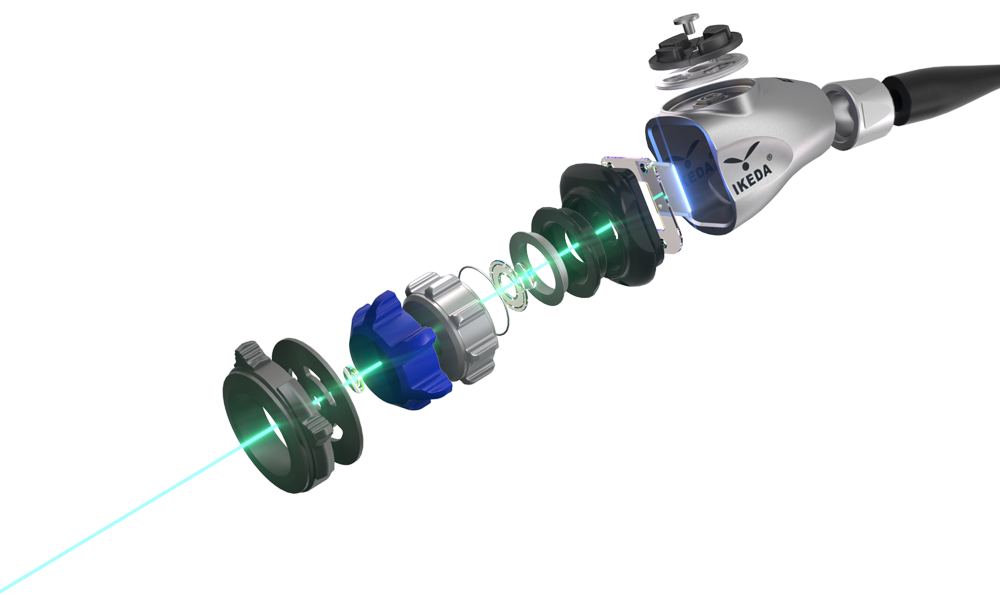

Zoom coupler,Stable clarity after focusing
Zoom coupler,Stable clarity after focusing
1080P Video Output
1080P Video Output
Portable Endoscope Camera

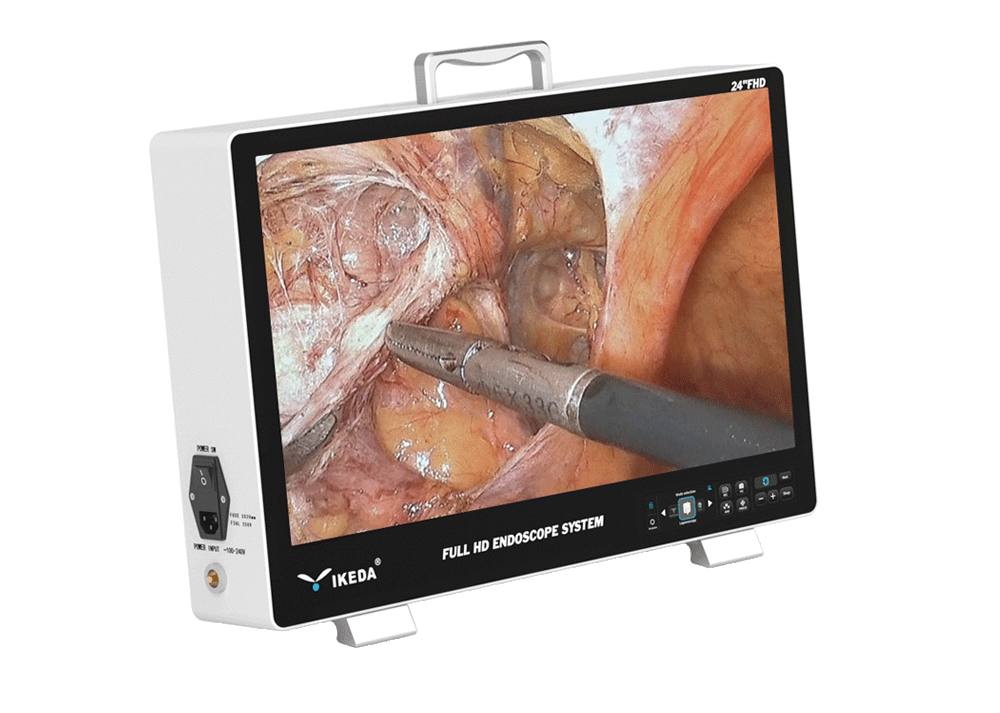

Compact Integrated Endoscope System

  • Camera Control Unit-YKD-9124-H
  • Camera Head -IPX8 waterproof grade
  • Medical trolley -YKD-2100




Portable Endoscope Camera

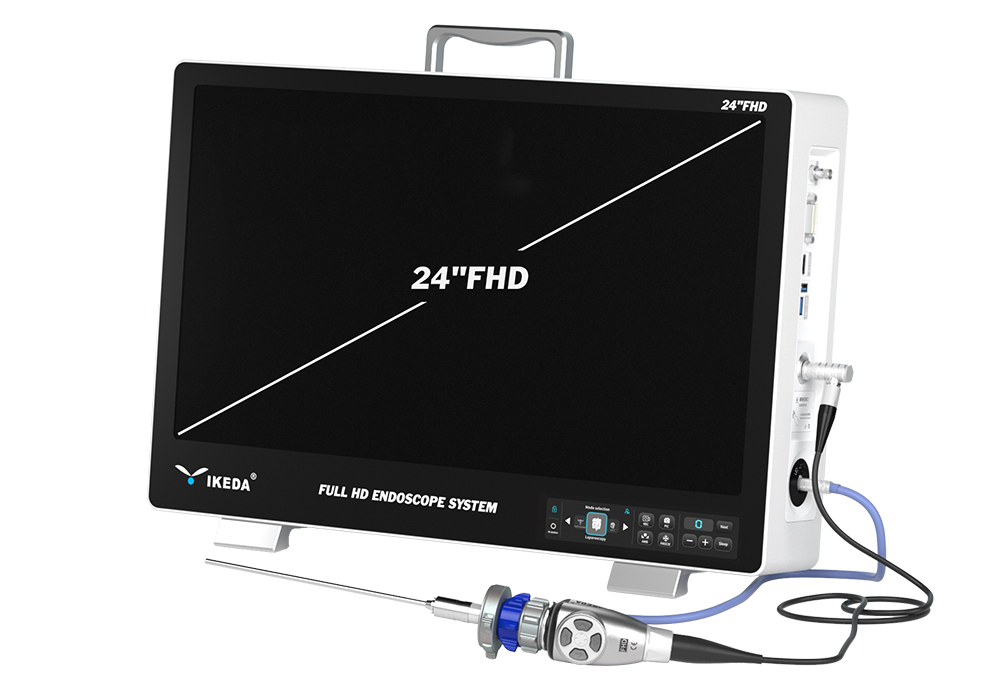

YKD-9124-H Portable Endoscopy Unit

  • Global Shutter CMOS FULL HD Image Sensor
  • Can be matched with stroboscopic light source for stroboscopic laryngoscopy
  • FHD camera head and LED cold light source integrated
  • Built-in USB FULL HD image storage, Integrated photo/video recording system
  • Universal C-mount threading
FHD Camera

Global Shutter Camera

  • FHD IPX-8 waterproof grade
  • User-Definable : Photo Capture/Video Recording/
  • Zoom in/Zoom Out/White Balance
  • Capture high-definition wide-area images
  • Achieve both high-speed signal processing and low noise
  • Capable of photographing moving objects without distortion
Product Detail

Camera head

Full HD imaging(1920x1080)
IPX8 waterproof, Full HD optical Coupler C-mount standard.

Voltage range (current consumption)

·100-240 V(50 VA)

Frequency

50-60Hz

Device protection

2xT3,15 A

Video system

Image resolution: FHD 1920× 1080 Horizontal resolution: 1200TVL

SNR:60DB,Tolerance20%
Scanning system:Progressive Scanning ·White balance automatically

Screen Size

24"

Light Source

In-Built 100W

Recording (Options)

Image format:JPG 1920x1080, Mpeg-4 (H.264 Codec): Image rate 60fps  Connection:USB

Connections

Video Out Terminal, 1 DVI. 1HDM, 1*CVBS

Protection Class

·I

Safety Class

BF

Standard

IBC 60601-1-2

Features

Auto White Balance/Freeze Function/Zoom/Touch Button Screen/USB Storage/Photo Capture/Video Recording/TELE

Language

Chinese/English/Japanese/Korean/Russian/Spanish
