Product Profile

IKEDA ALL-IN-ONE Endoscope Camera System integrates host, LED light source, monitor, video storage and video playback.YKD-9122-H Endoscope Camera System can be used for arthroscopy, ENT,  PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, urology resectoscope, plastic surgery endoscope, laparoscope,breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber ureteroscope, etc.
Product Feature
Surgical Video Recording and Playback
Surgical Video Recording and Playback
FHD-Camera-Head
FHD-Camera-Head
Can be matched with stroboscopic light source for stroboscopic laryngoscopy
Can be matched with stroboscopic light source for stroboscopic laryngoscopy
11-Clinical-Specialties
11-Clinical-Specialties
Zoom coupler，Stable clarity after focusing
Zoom coupler，Stable clarity after focusing
1080P Video Output
1080P Video Output

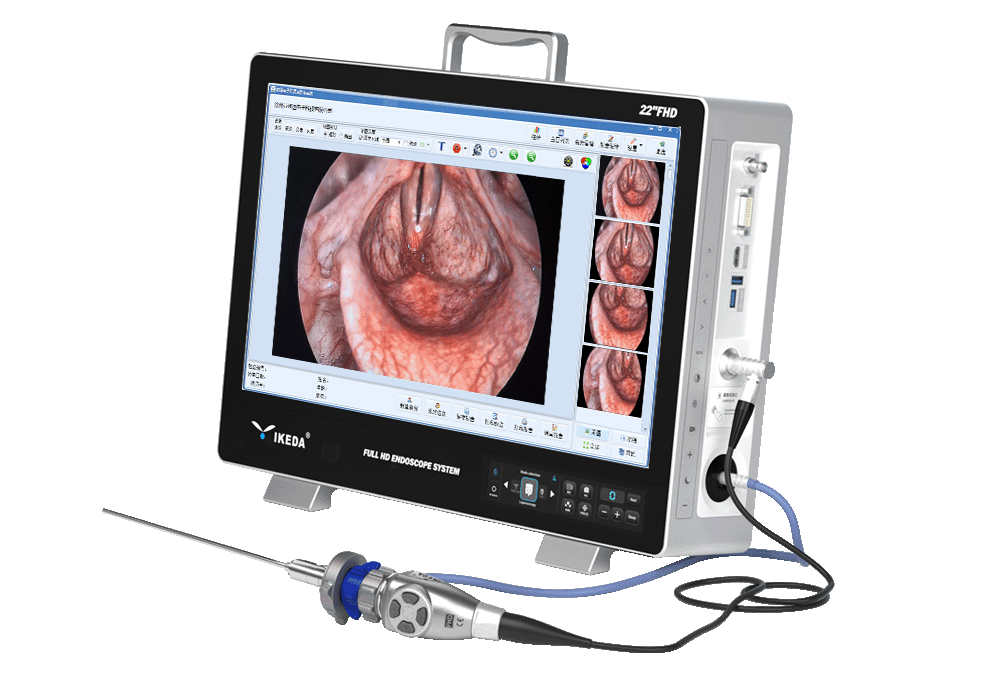

Portable Endoscopy Unit

ALL-IN-ONE Endoscope Camera System

  • Camera Control Unit-YKD-9122-H
  • Camera Head -IPX8 waterproof grade
  • Medical trolley -YKD-2100




Portable Endoscopy Unit

YKD-9122-H

  • FULL HD Image Sensor
  • Can be matched with stroboscopic light source for stroboscopic laryngoscopy
  • FHD camera head and LED cold light source integrated
  • Built-in USB FULL HD image storage, Integrated photo/video recording system
  • Universal C-mount threading
Portable Endoscopy Unit

FHD Camera

  • FHD IPX-8 waterproof grade
  • User-Definable : Photo Capture/Video Recording/
  • Zoom in/Zoom Out/White Balance
  • Capable of photographing moving objects without distortion
  • Achieve both high-speed signal processing and low noise
  • Capture high-definition wide-area images
Product Detail

Camera head

Full HD imaging(1920x1080)
IPX8 waterproof, Full HD optical Coupler C-mount standard.

Voltage range (current consumption)

·100-240 V(50 VA)

Frequency

50-60Hz

Device protection

2xT3,15 A

Video system

Image resolution: FHD 1920× 1080 Horizontal resolution: 1200TVL

SNR:60DB,Tolerance20%
Scanning system:Progressive Scanning ·White balance automatically

Screen Size

22"

Light Source

In-Built 100W

Recording (Options)

Image format:JPG 1920x1080, Mpeg-4 (H.264 Codec): Image rate 60fps  Connection:USB

Connections

Video Out Terminal, 1 DVI. 1HDM, 1*CVBS

Protection Class

·I

Safety Class

BF

Standard

IBC 60601-1-2

Features

Auto White Balance/Freeze Function/Zoom/Touch Button Screen/USB Storage/Photo Capture/Video Recording

Language

Chinese/English/Japanese/Korean/Russian/Spanish
