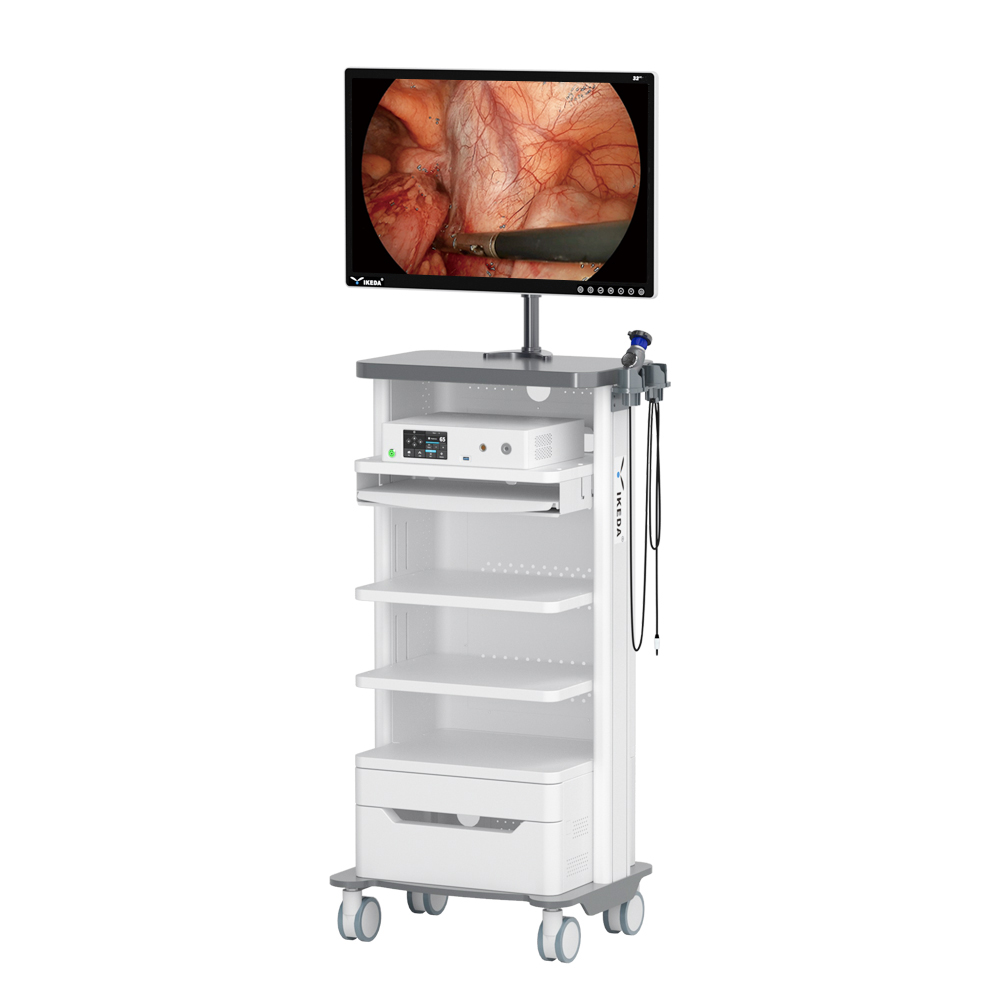

IKEDA is a high-tech enterprise specializing in the research, development, production, and sales of endoscopic camera systems. The Full HD Endoscope Camera Systems are currently used in clinical departments such as Otolaryngology, Urology, Gynecology, Orthopedics, General surgery, Neurosurgery, and Plastic Surgery.

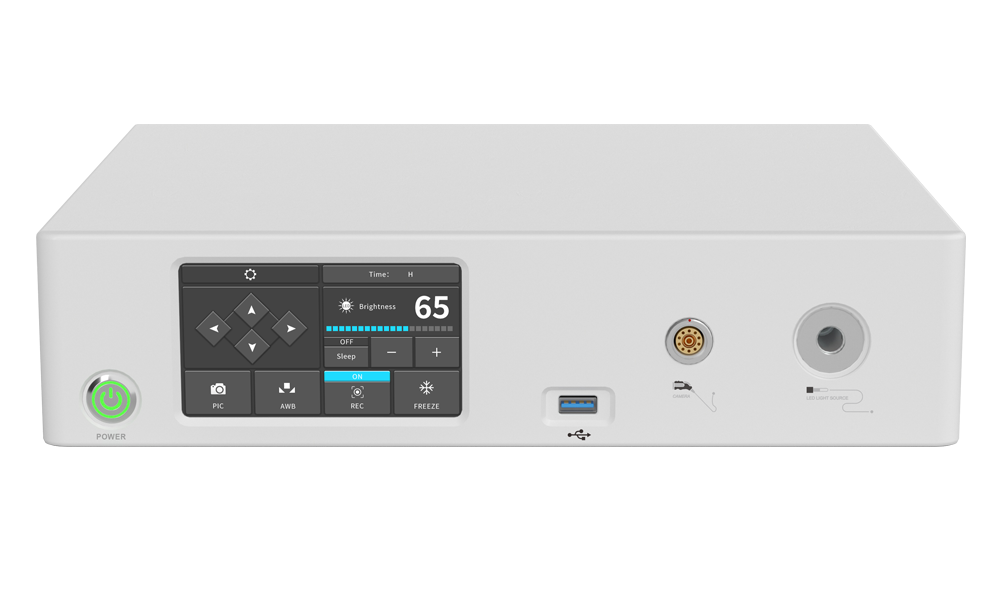

• FULL HD camera control unit
• FHD camera head and LED cold light source integrated

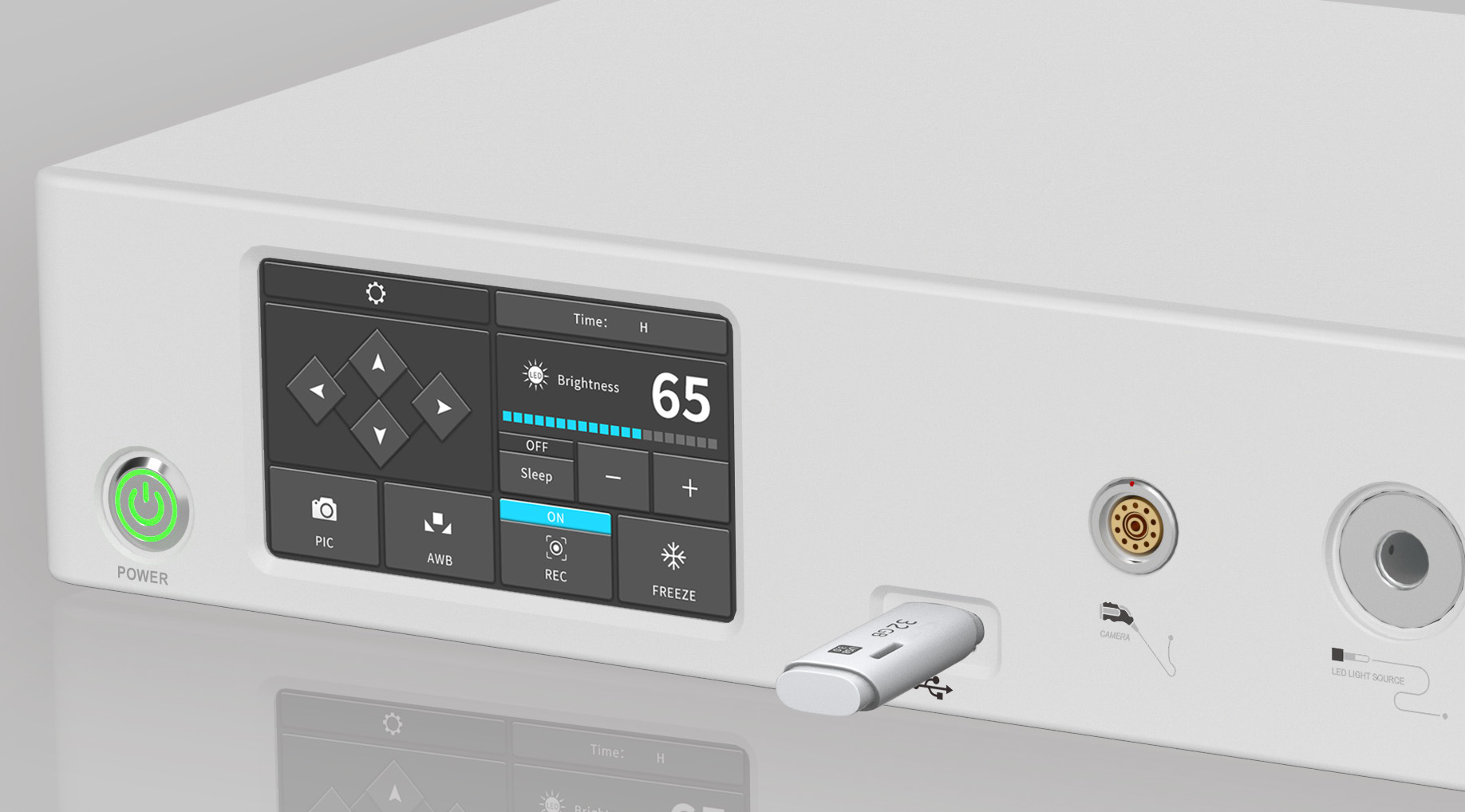

• Built-in USB FULL HD image storage, Integrated photo/video recording system
• Touch button, easy to clean
• FHD IPX-8 waterproof grade
• User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
Medical Monitor
• YKD-8032/YKD-8027/YKD-8024/YKD-8022 4 different models available.
• Anti-Glare
• Full-laminated
• CE/ROHS/FCC certified
|
Camera head |
· Full HD imaging (1920 x 1080) |
| · IPX8 waterproof | |
| · Full HD optical coupler C-mount standard | |
|
Video system |
· Image resolution: FHD 1920 x 1080 |
| · Horizontal resolution: ≥1200 TVL,Tolerance 20% | |
| · SNR: 60dB,Tolerance 20% | |
| · Scanning system: Progressive Scanning | |
| · White balance automatically | |
| Screen size | · 5 inch |
| Light source | · Built-in LED cold light source |
|
Recording (Options) |
· Image format: JPG 1920 x 1080 |
| · Video format: Full HD 1920 x 1080; | |
| Mpeg-4 (H.264 Codec); Image rate 60fps | |
| · Connection: USB | |
|
Connections |
Video out terminal: |
| · 1x DVI | |
| · 1x HDMI | |
| · 1x CVBS | |
|
Features |
· White balance |
| · Freeze function | |
| · Zoom in/Zoom out | |
| · Touch Buttons | |
| · USB storage | |
| · Photo capture/Video recording | |
|
Language |
· Chinese/English/Japanese/Korean/Spanish/German/Russian |
