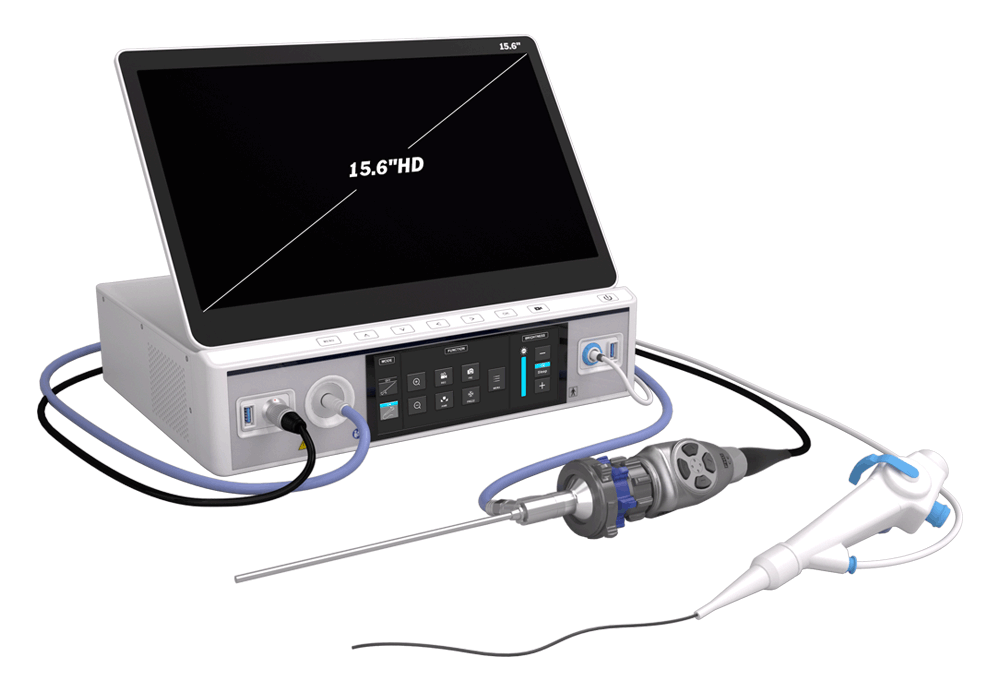

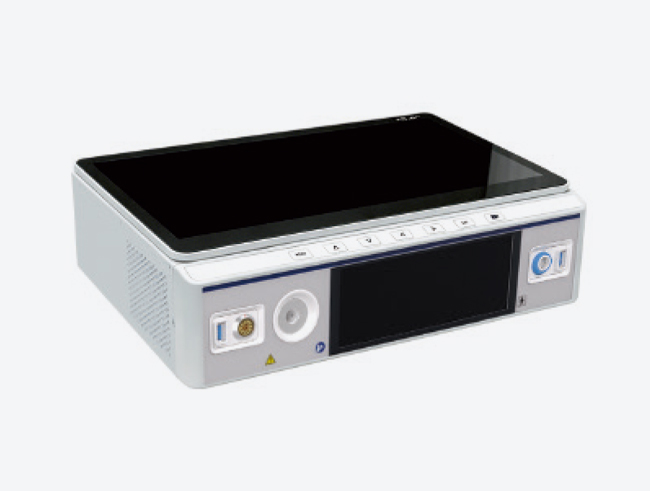

The AKX-9672 Veterinary Dual-Use Endoscope system is compatible with rigid telescopes, video otoscopes, flexible fiberscopes and single-use flexible endoscopes, This makes it an efficient and economical solution for any general or specialty practice looking to integrate endoscopy or upgrade old technology.

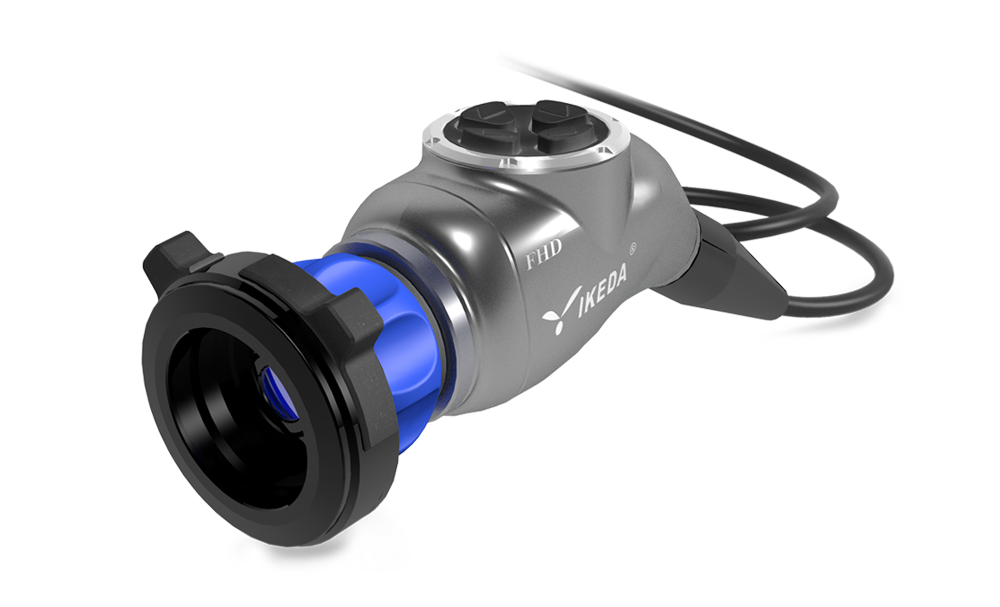

• Full HD CMOS, 1080P Resolution

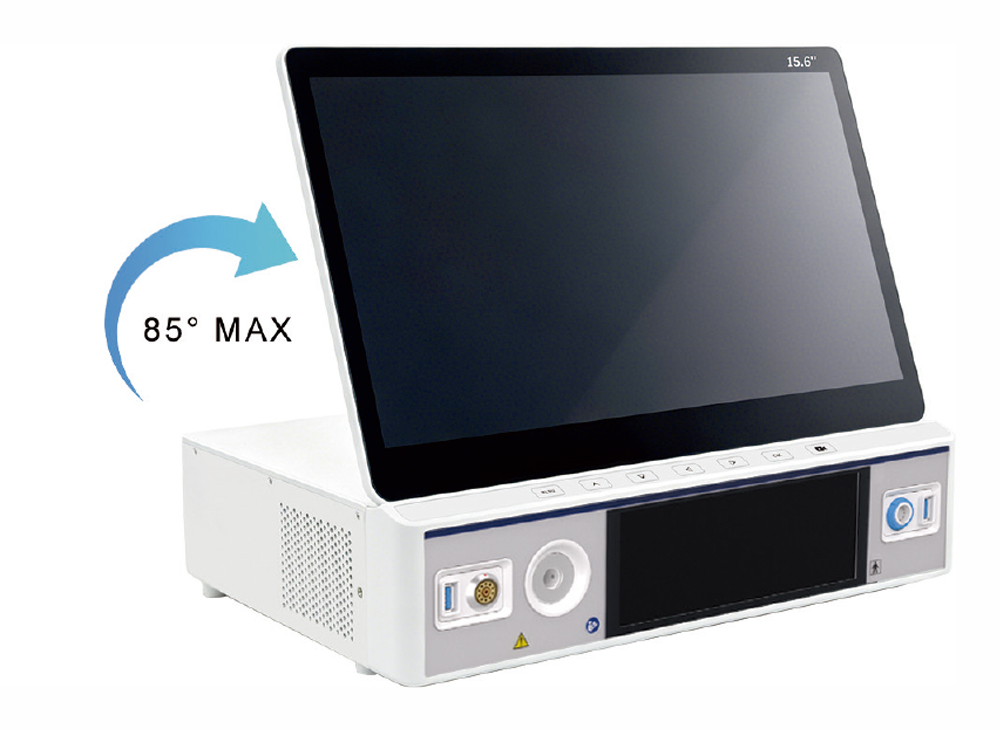

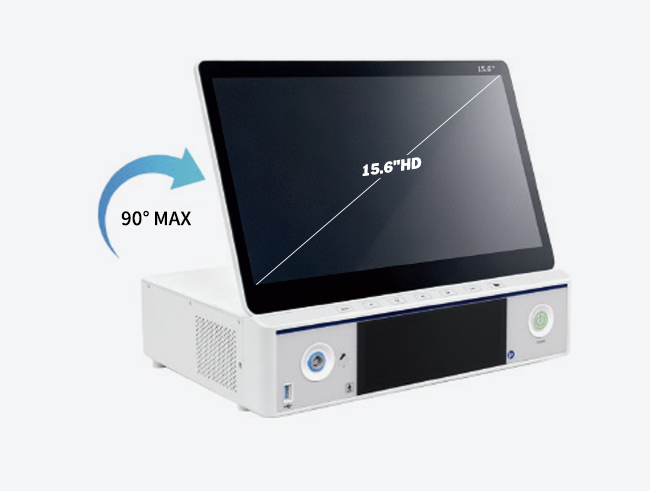

• Integrated design with a built-in 15.6-inch full HD display；
• Built-in 6.8-inch smart LCD touchscreen,Easy and convenient to operate
• Disposable Scope Mode/ Rigid Endoscope Mode
• Dual-operation Control System(Touch Screen+Mechanical Bottons)
• Built-in USB image storage
• Multi-Use single-use videoscope
Tailored for veterinary use, these pre-sterilized disposable electronic endoscopes effectively avoid cross-contamination. The slim body fits various pets, delivering sharp HD images for accurate examination. Supporting combined diagnosis and treatment, they require no disinfection or upkeep, helping clinics lower costs and deliver safer, more efficient services with less stress for animals.

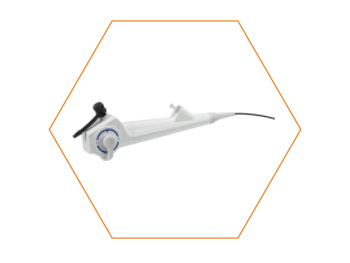

• Ergonomic Design
• FHD IPX-8 waterproof grade
• User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance

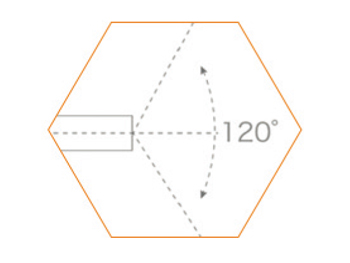

| Model | Insertion Tube | Distal End | Channel Size | Resolution | Working Length (cm) | Bending | Field of View | Depth of Field |
| C2 | 2.5mm | 2.8mm | 1.2mm | 160,000 | 600 |
Up＞210° Down＞210° |
120° | 5-50mm |
| C3 | 3.1mm | 3.2mm | 1.2mm | 160,000 | 600 |
Up＞210° Down＞210° |
120° | 5-50mm |
| C4 | 4.5mm | 4.7mm | 2.2mm | 160,000 | 600 |
Up＞210° Down＞210° |
120° | 5-50mm |
| C5 | 5.3mm | 5.4mm | 2.8mm | 160,000 | 600 |
Up＞210° Down＞210° |
120° | 5-50mm |
| C6 | 5.7mm | 5.9mm | 3.2mm | 160,000 | 600 | Up＞210° Down＞210° | 120° | 5-50mm |
| C7 | 6.2mm | 6.4mm | 2.8mm | 1000,000 | 600 | Up＞210° Down＞210° | 130° | 4-80mm |
| C8 | 2.0mm | 2.0mm | / | 160,000 | 600 | Up＞210° Down＞210° | 120° | 5-50mm |

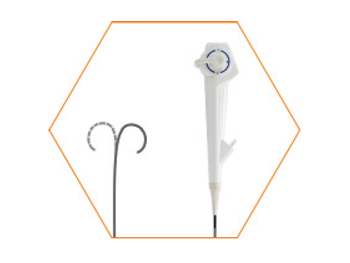

| Model | Insertion Tube | Channel Size | Resolution | Working Length | Bending | Field of View | Depth of Field |
| M3 | 3.1mm | 1.2mm | 160,000 | 670mm |
Up 275° Down 275° |
120° | 5-50mm |
| M5 | 2.5mm | 1.2mm | 160,000 | 670mm | Up 275° Down 275° | 120° | 5-50mm |
| M7 | 2.8mm | 1.2mm | 160,000 | 670mm | Up 275° Down 275° | 120° | 5-50mm |
|
M6 (Pressure Measurement) |
2.8mm | 1.2mm | 160,000 | 670mm | Up 275° Down 275° | 120° | 5-50mm |
| Model | Insertion Tube | Channel Size | Resolution | Working Length | Bending | Field of View | Depth of Field |
| R1 | 5.5mm | 2.2mm | 1000,000 | 380mm |
Up 210° Down 130° |
130° | 4-80mm |
|
R2 (Rigid Endoscope) |
4.5mm | 2.2mm | 160,000 | 230mm | / | 120° | 5-50mm |
| Model | Insertion Tube | Channel Size | Resolution | Working Length | Bending | Field of View | Depth of Field |
| R1 | 2.2mm | 1.2mm | 160,000 | 200±10mm |
Left 90° Right 90° |
130° | 5-40mm |
