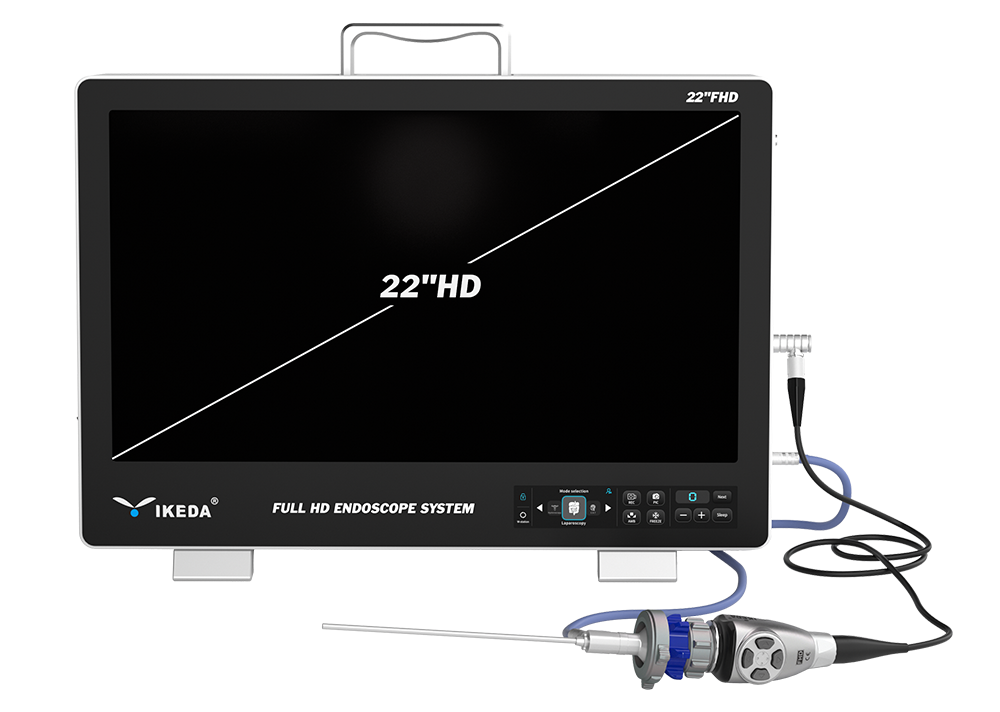

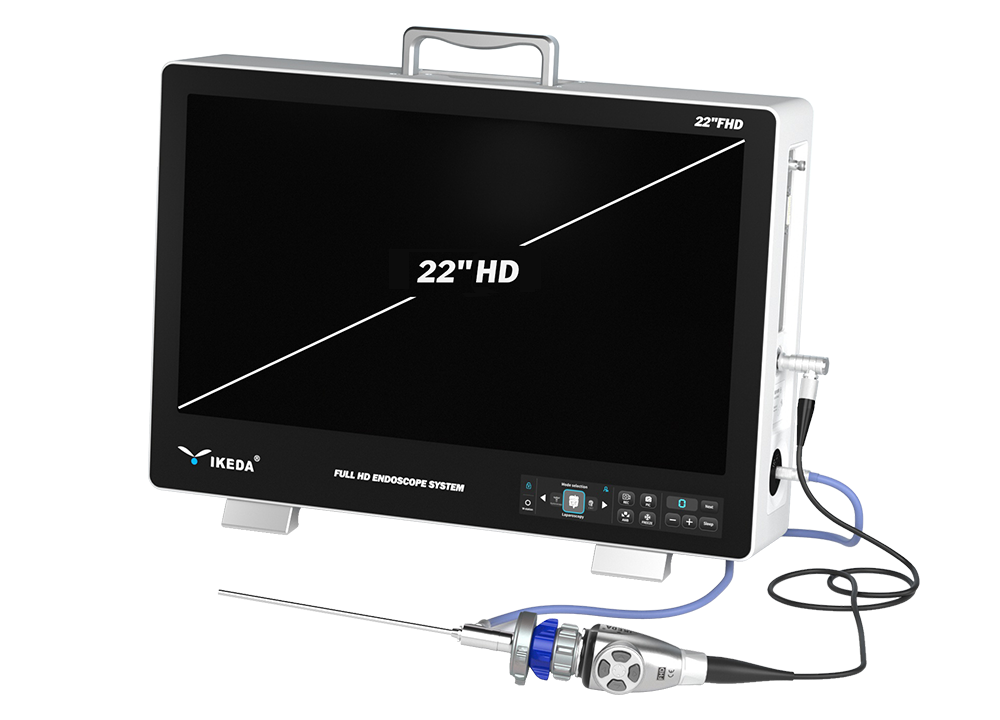

The IKEDA YKD-9122ATFHDS is a next-generation ENT imaging solution built for today’s clinical realities. The all-in one endoscope camare for ENT specialists. With integrated stroboscopy and sharp HD resolution, this system delivers unmatched diagnostic precision, seamless workflows, and an elevated patient experience.

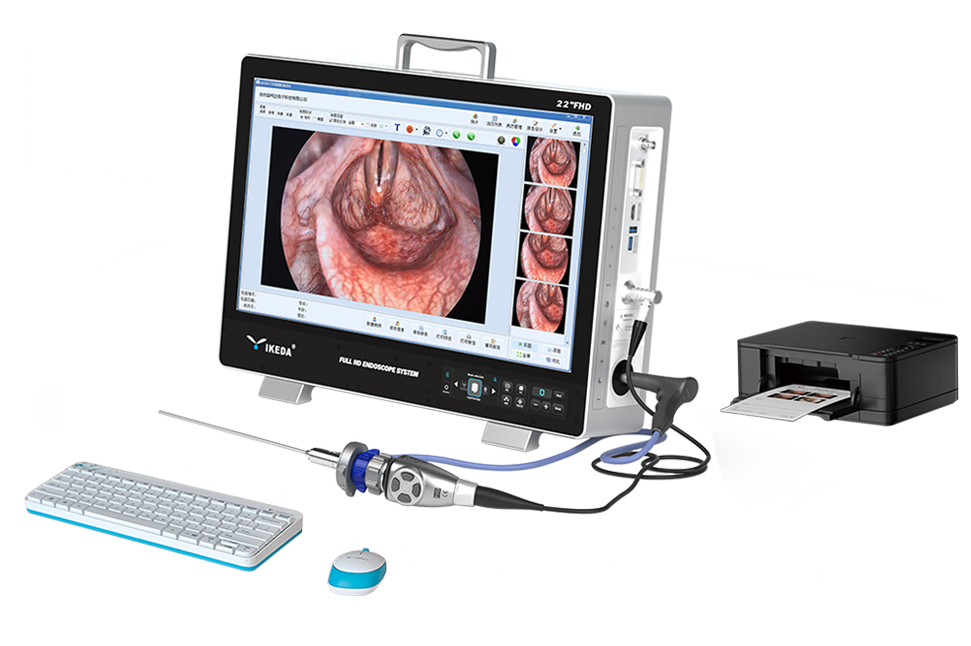

IKEDA Stroboscopy Camera System deliver high-quality imaging for detailed analysis of vocal cord function. With advanced light synchronisation technology, they allow clinicians to observe vocal fold vibrations in slow motion, aiding the accurate diagnosis of voice disorders.
• FULL HD camera control unit
• Built-in stroboscopic light source
• All-in-one design integrates 22-inch FHD monitor, LED light source, and camera control unit.
• Dual-operation Control System(Touch Screen+Mechanical Bottons)
• Built-in USB FULL HD image storage, Integrated photo/video recording system
• FHD IPX-8 waterproof grade
• User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
• Outstanding optical quality - High-quality imaging delivers excellent contrast and homogenous illumination.
• Comprehensive product line - This series of Rigid Laryngoscope is available with multiple configuration options, offering various directions of view (70°,90°). Specific diameters include 5 mm, 6 mm, and 8 mm.
• A detachable handle allows easy and complete cleaning.
|
Camera head |
· Full HD imaging (1920 x 1080) |
| · IPX8 waterproof | |
| · Full HD optical coupler C-mount standard | |
|
Video system |
· Image resolution: FHD 1920 x 1080 |
| · Horizontal resolution: ≥1200 TVL,Tolerance 20% | |
| · SNR: 60dB,Tolerance 20% | |
| · Scanning system: Progressive Scanning | |
| · White balance automatically | |
|
Screen Size |
· 22 inch |
|
Recording (Options) |
· Image format: JPG 1920 x 1080 |
| · Video format: Full HD 1920 x 1080; | |
| Mpeg-4 (H.264 Codec); Image rate 60fps | |
| · Connection: USB | |
|
Connections |
Video out terminal: |
| · 1x DVI | |
| · 1x HDMI | |
| · 1x CVBS | |
|
Features |
· White balance |
| · Freeze function | |
| · Zoom in/Zoom out | |
| · Touch Screen | |
| · USB storage | |
| · Photo capture/Video recording | |
|
Language |
· Chinese/English/Japanese/Korean/Russian/Spanish |
