IKEDA Medical Monitor provide high-definition visualization for surgical and diagnostic procedures, offering clear and accurate imaging. Designed to integrate seamlessly with various imaging systems, they support enhanced procedural precision. Their ergonomic design ensures user-friendly operation in any clinical environment.

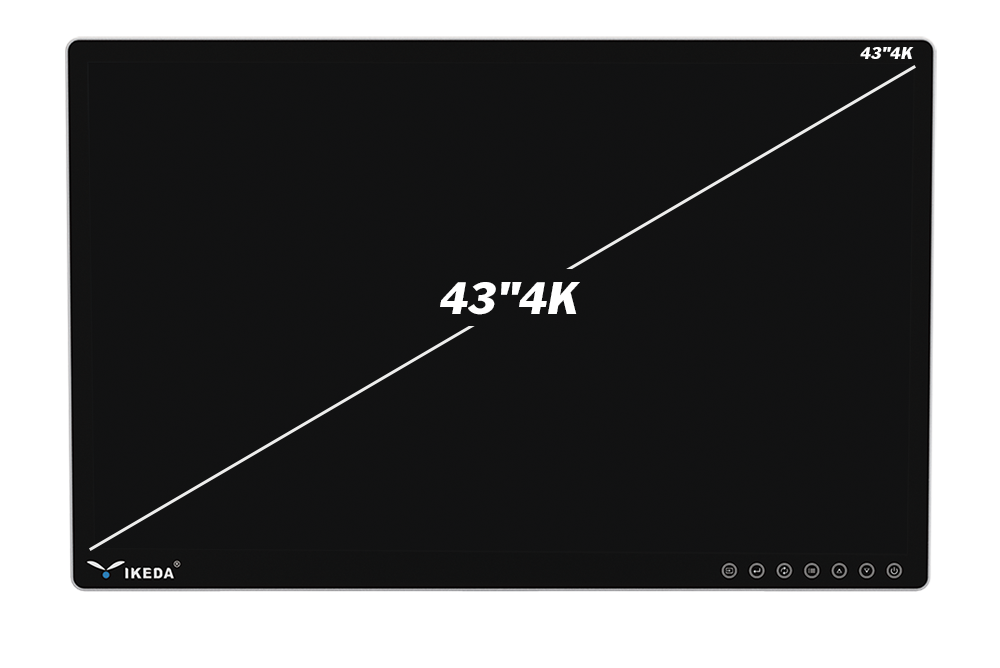

This 43-inch Endoscopy monitor with Ultra High Definition picture quality brings out the full potential of IKEDA endoscopy systems. The 4K upscaling function accommodates existing HD imaging systems.

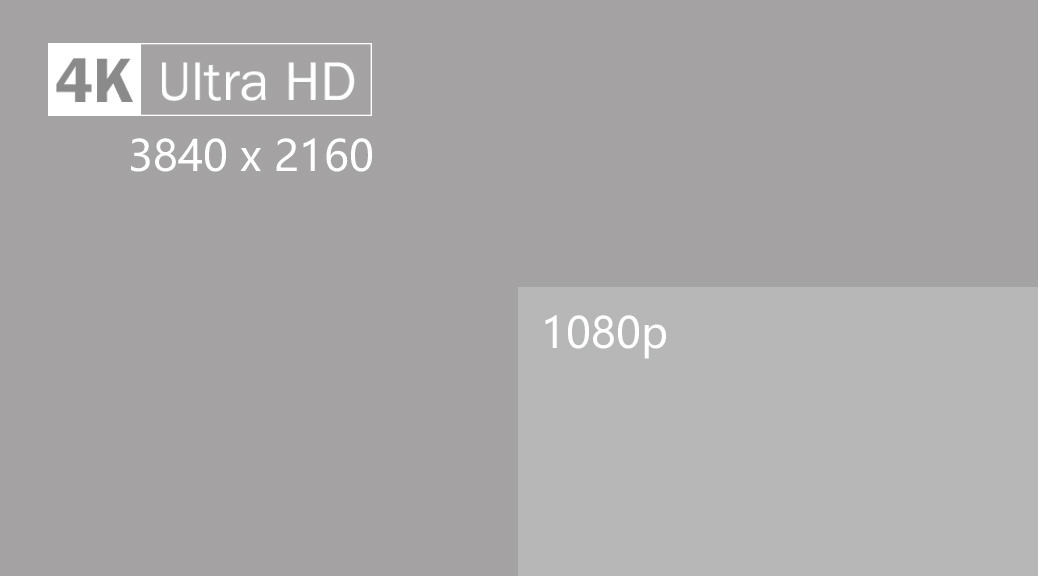

3840x2160 ultra-high-definition image output, showing richer textures and more accurate tissue identification.

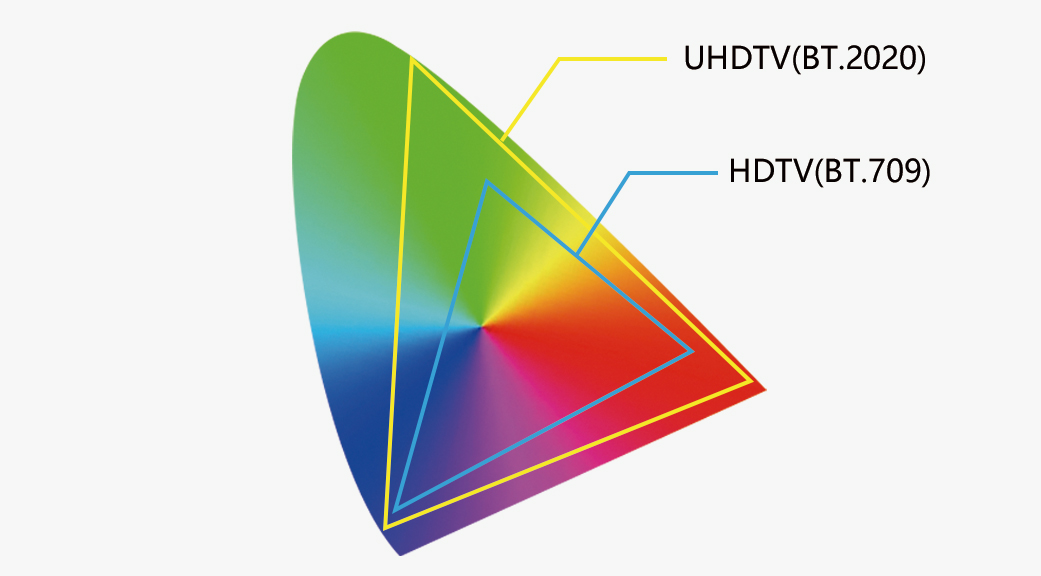

Wider color gamut, truly restore the color of organs and tissues, and locate blood vessels, lymph nodes and nerves faster.

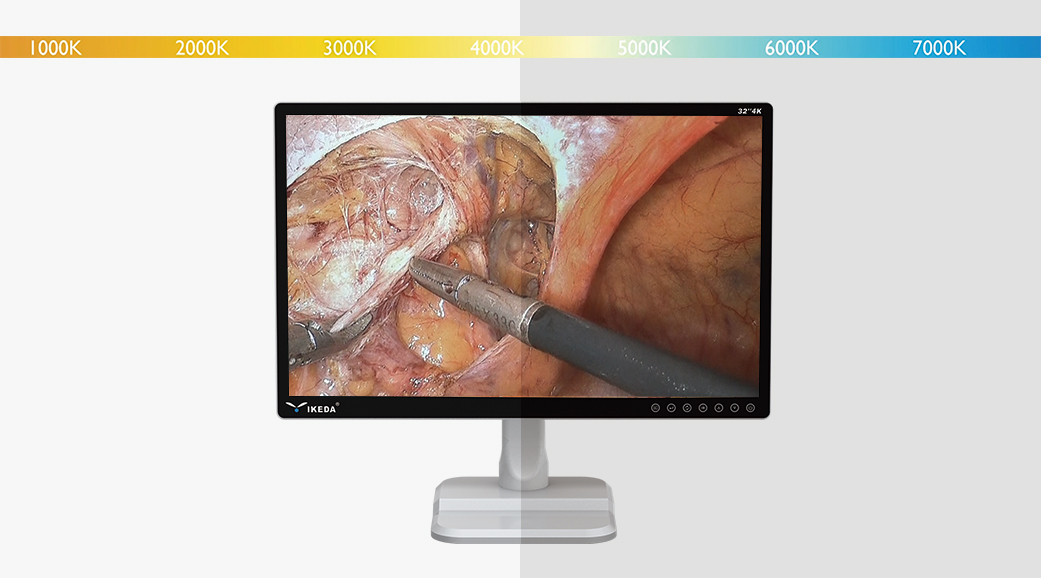

Display brightness is automatically adjusted to the most suitable levels

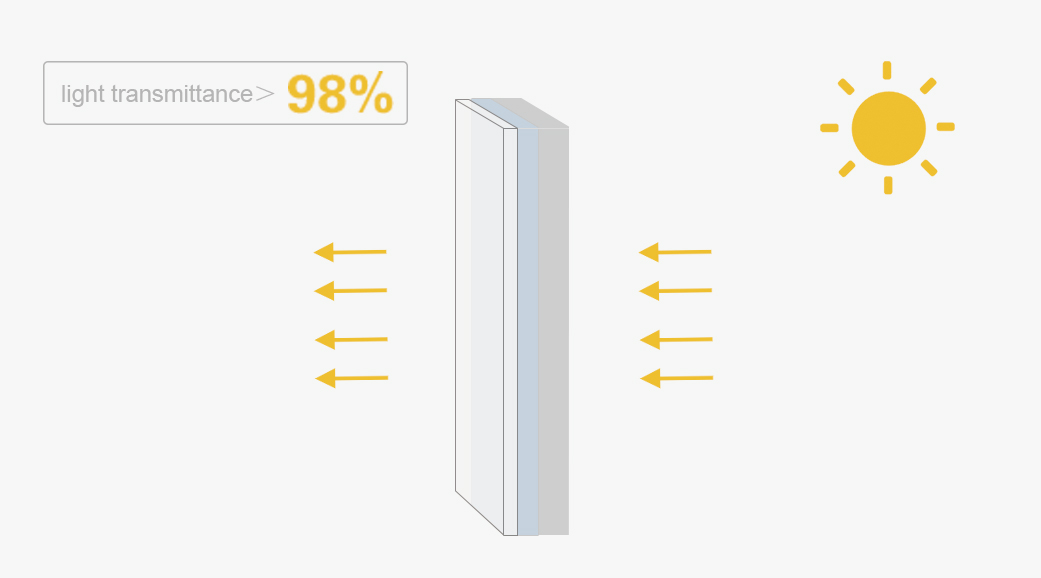

Transparency anti-glare technology, light transmittance > 98%
| Model | YKD-8143 |
|---|---|
| Display size | 43 inches |
| Resolution | 3840x2160 |
| Proportion | 16:9 |
| Highest brightness(cd/m²) | 500 |
| Contrast | 1000:1 |
| Display color | 103 PPI |
| Click on it | 0.2451x0.2451 |
| Response time | 6ms |
| Visual angle | 89/89/89/89 |
| Power consumption | 150W max |
| Operating temperature | 0°~50° |
| Storage temperature | -20°~60° |
| MTBF | > 50,000 hours |
| Signal interface | HDMI 2.0x2,DP 1.4x2 |
| Color gamut | 99% sRGB |
| Operating voltage | DC 24V |
| Frequency of scans | 60Hz |
| Weight | 15kg |
