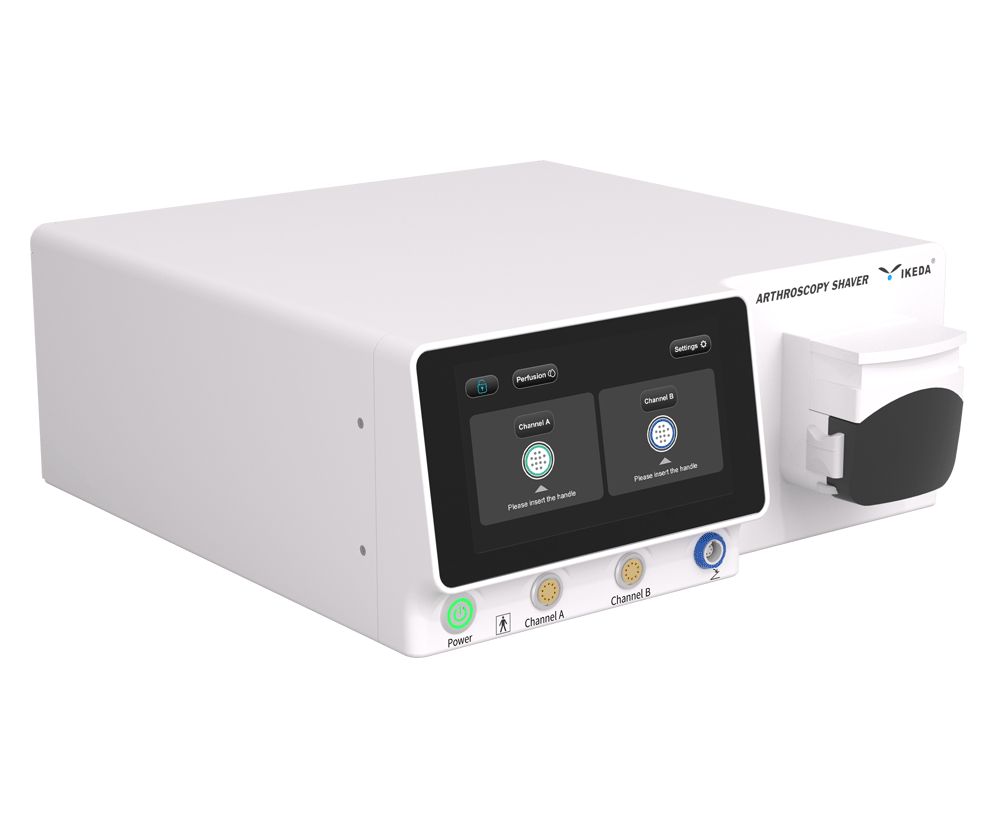

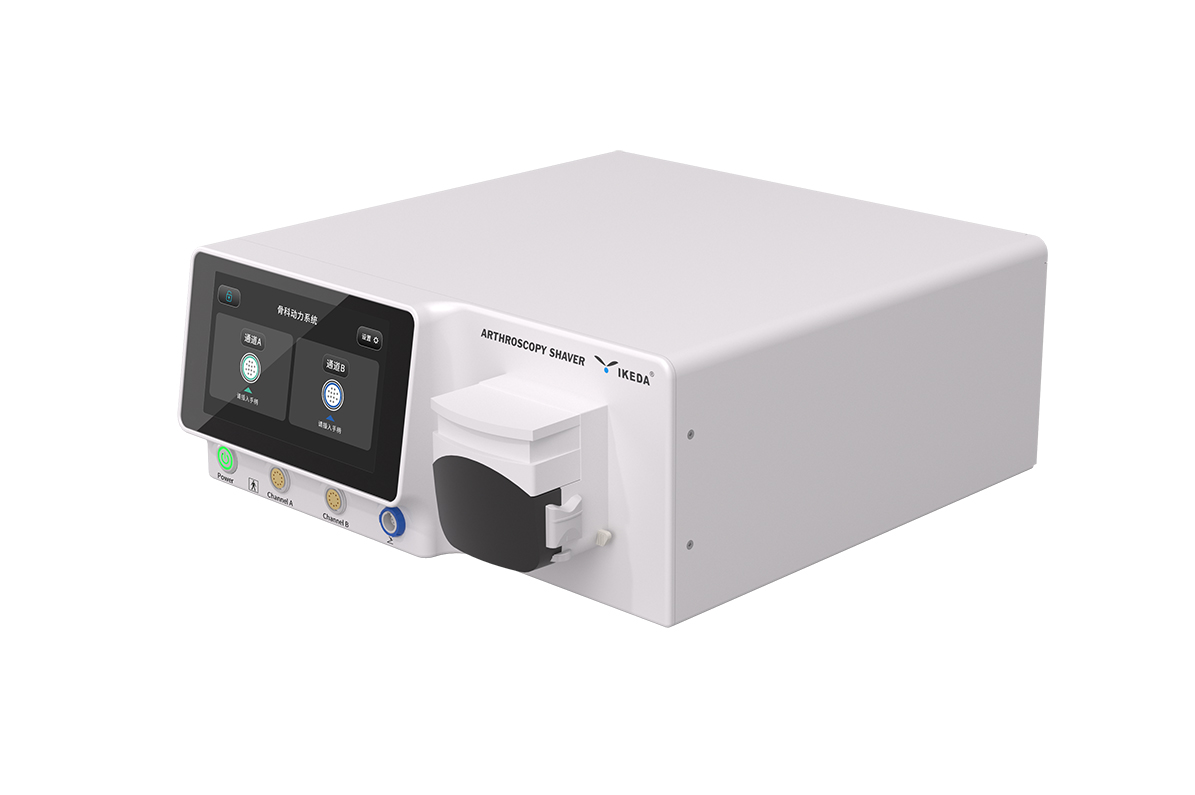

The IKEDA arthroscopy shaver system is flexibly controlled via a handle and foot pedal, with a built-in single pump for irrigation — eliminating the need for external tubing and enabling fully integrated cutting, irrigation, and suction in one seamless procedure, providing uninterrupted power support for advanced arthroscopic surgery.

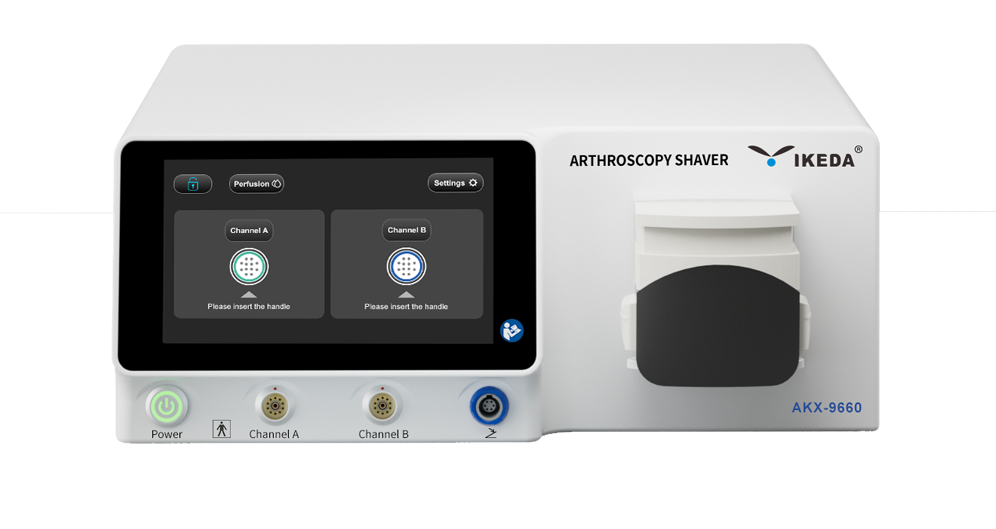

• 7-inch intelligent LCD touchscreen for simple and intuitive operation
• Four operating modes: forward, reverse, reciprocating, and jog control.
• Built-in pump with adjustable flow range.
• Dual-handpiece design allows two handpieces to work simultaneously with different speeds and modes.

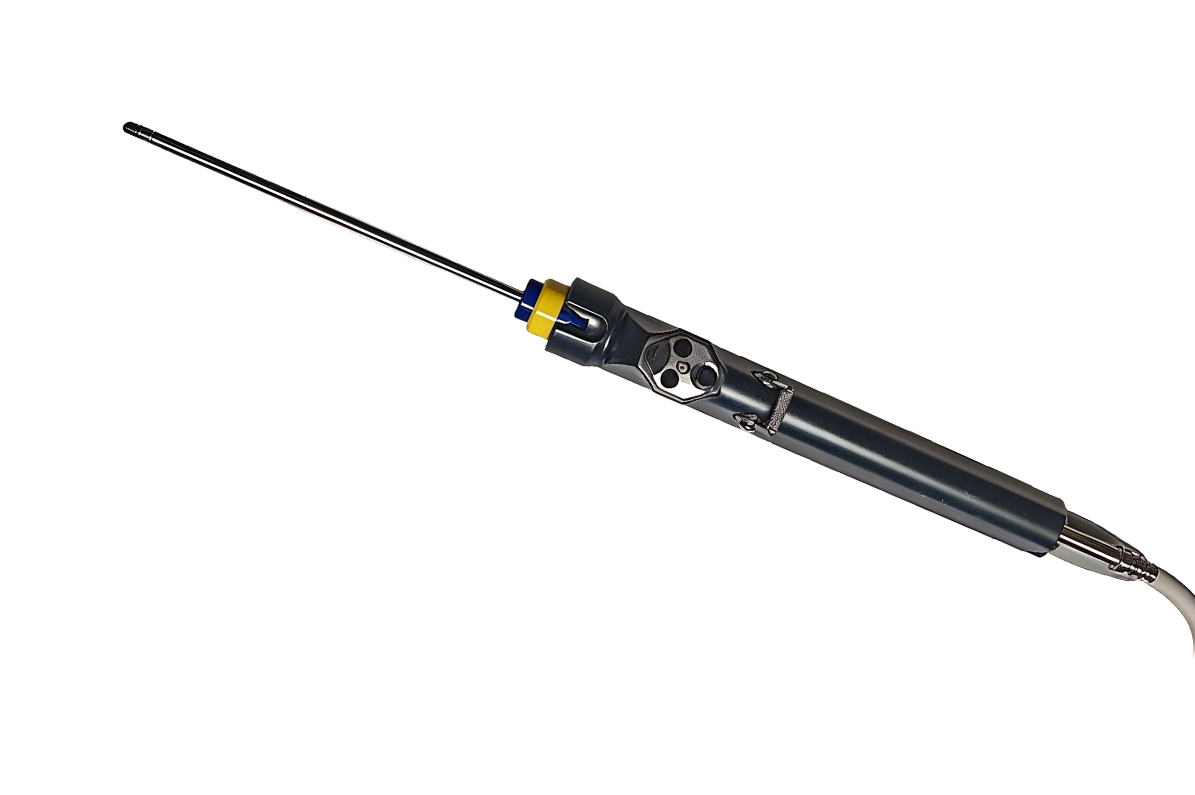

• Universal handpiece compatible with full range of shaver blades for sports medicine.
• Shaver handpiece is autoclavable.
• Speed memory and automatic fault alarm functions.
| Power supply type |
AC 100-240V 50/60Hz |
 |
| Operating mode | Continuous operation | |
| Input power | 300VA | |
| Fuse | T2AL 250V | |
| Preset no-load speed | Planer mode: 500 r/min～5000 r/min | |
| Preset no-load reciprocating frequency | Grinder head mode: 500 r/min～8000 r/min | |
| External dimmension | 0.3～1s | |
| Size | 36(L)x42(W)x14.5(H)cm | |
| Ambient temperature |
Transport/Storage -20°C to 60°C Operating temperature: 5°C to 35°C |
| Handle length |
190mm |
 |
| Wire length | 2960mm | |
| Weight | 700g | |
| Maximum speed | 8000 rpm | |
| Steriization method | High-temperature high-pressure sterilization,≤200times | |
| Ambient temperature |
During operation:+10°C to +40°C During storage and transport:-20°C to +45°C |
|
| Max. relative humidity |
During operation:100% During storage and transport: 90% |
|
| Class of protection | Class I BF Type | |
| Buttons | forward, reverse, reciprocating | |
| Compatible brand blades | CONMED/Smith & Nephew/Stryker |
