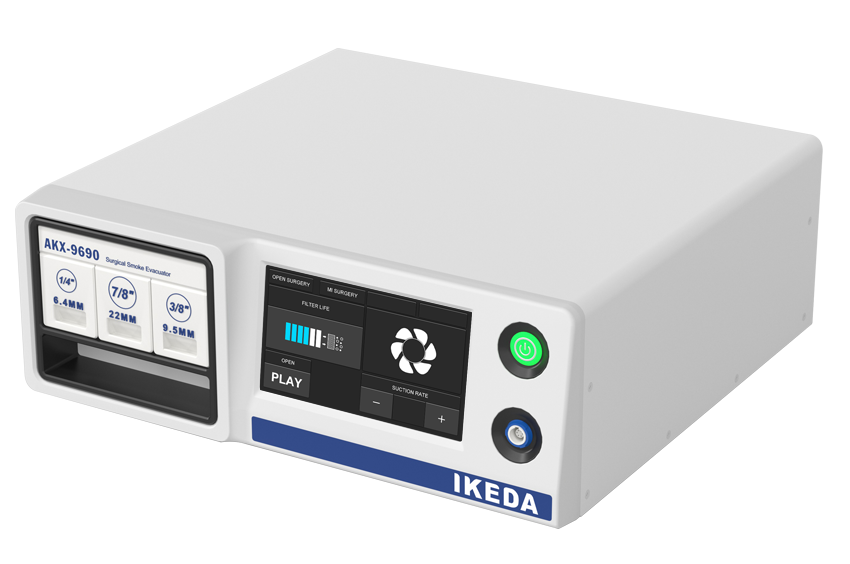

The IKEDA Smoke Evacuation System AKX-9690 is a compact, high-efficiency solution designed to enhance operating room safety by effectively removing hazardous surgical smoke generated during electrosurgical and laser procedures. The product features next-generation ULPA filtration technology, removing 99.999% of smoke pollutants. It offers user-friendly operation for both open and laparoscopic procedures.
• 7-inch smart touchscreen with simple and intuitive operation
• Supports 1-10 adjustable smoke extraction levels
• 3-port fiter design compatible with various pipe sizes
• Smart monitoring of filter cartridge lifespan (up to 35 hours)

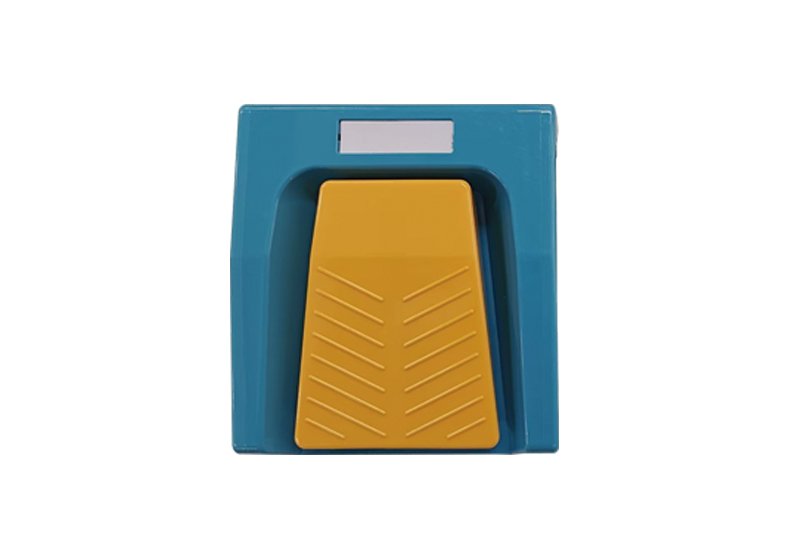

• Multiple activation modes: manual, interlock, and foot pedal
| Noise Level |
· 43db~73db |
| Maximum Airflow | · 1300 m²/h (varies with different interfaces) |
| High Static Pressure | · 23 kPa |
| Purification Efficiency | · 99.999% (for particles ≥0.12μm) |
| Power Supply Type | · 220V~ 50Hz |
| Circuit Breaker | · 3A 250V |
| Maximum Power Input | · ≤300 VA |
|
Display Panel |
· 7-inch LCD |
| Dimensions |
· 420x145x398mm |
| Smoke Extraction Level |
· 10-stage adjustment |
